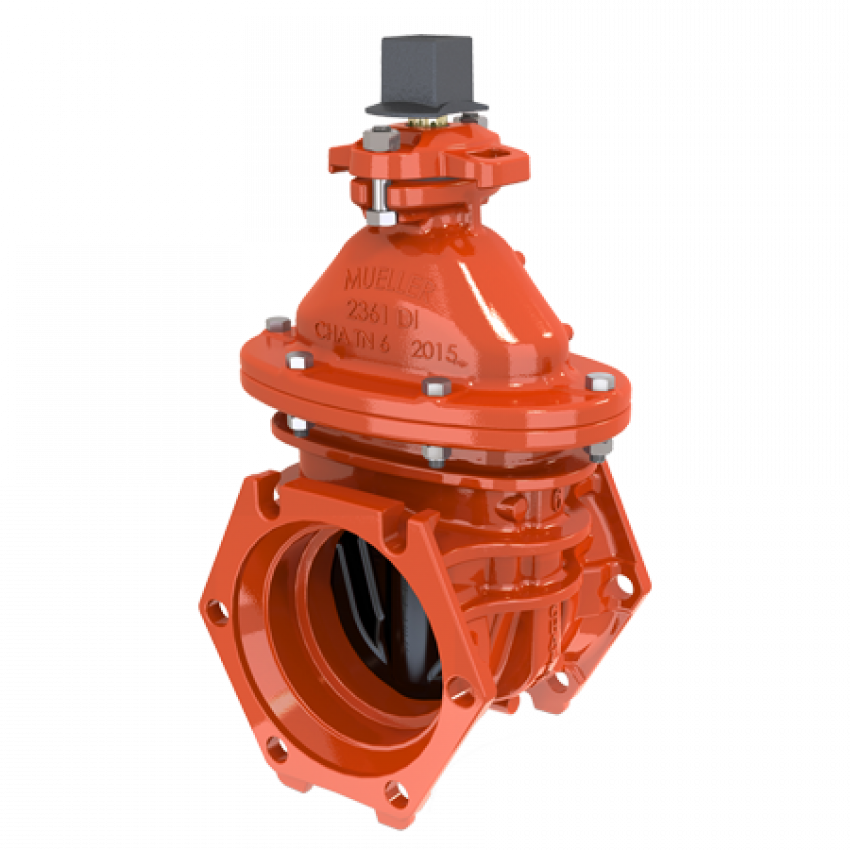

MUELLER COMPANY A-2361 Series 6 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

MUELLER COMPANY A-2361 Series 6 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve

$999.99 USD
$999.99 USD
Sale Sold out

Product Details


Overstock items, New, never used, May not be in original packaging.

  • 2 in square operating nut (optional handwheel)
  • All ductile iron body and bonnet
  • Non-rising stem (NRS)
  • Ductile iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron – acetal caps on guides ease operation and avoid wear
  • Antifriction washer above and below thrust collar
  • 316 stainless steel, bonnet and stuffing box bolts and nuts
  • Meets requirements of AWWA /ANSI C515 and is certified to ANSI/NSF 61 & 372
  • Mueller Pro-Gard® fusion bonded epoxy coating – 10 mil (250 ?) nominal
  • Working pressure: 350 psig /24 brag; test pressure: 700 psig /48 brag



Specifications

ANSI: ANSI 372, ANSI 61, ANSI C111, ANSI C515, ANSI C550
ASME: ASME B16.1 Class 125
ASTM: ASTM A-536, ASTM B-138, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
AWWA: AWWA C-111, AWWA C-515, AWWA C-550
Application: Potable Water
Coating: Fusion Bonded Epoxy
Ductile Iron Pipe Type: Ductile Iron Mechanical Joint Pipe
End Connection 1: Mechanical Joint
End Connection 2: Mechanical Joint
End Connections: Mechanical Joint
FM Approved: Yes
Length: 10-1/2
Material: Ductile Iron, Bronze, Plastic, Rubber, Stainless Steel
Material Type: 316, Acetal
NSF: NSF 372, NSF 61
NSF Certified: Yes
Pressure - High: 350
Pressure - Maximum: 700 psig
Recommended Valve Application: Potable Water
Style Name: A-2361 Series
UL Listed: UL 262
Valve Body Style: Open Left
Valve Disc Material: Ductile Iron
Valve Operator: 2 in Square Nut
Valve Port Opening: Full Port
Valve Size: 6 in
Valve Stem: Non-rising
Valve Type: Resilient Wedge Gate Valve
Waterworks Application: Potable Water
Weight: 186
Width: 13-1/2
