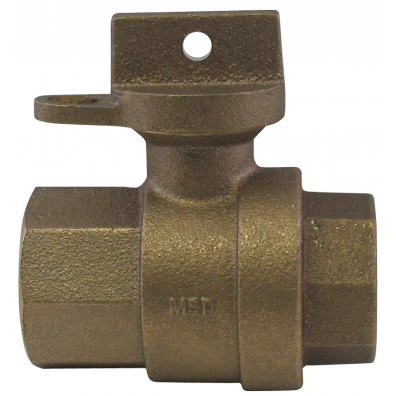

A.Y. MCDONALD 3/4 in. FIP Brass Ball Valve Curb Stop with Lockwing

A.Y. MCDONALD 3/4 in. FIP Brass Ball Valve Curb Stop with Lockwing

$119.99 USD
$129.99 USD $119.99 USD
Sale Sold out

Product Details


Overstock items, New, never used, May not be in original packaging.

  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with “NL”
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
  • Manufactured in compliance with ANSI/AWWA C800 (latest revision)
  • End piece joint sealed with an EPDM O-ring and thread locker
  • Valve rated for 300 psig water pressure, end connections not to exceed rated pipe pressure
  • Blow out proof EPDM port seals
  • PTFE coated brass ball
  • Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision)

Specifications

ANSI: ANSI 372, ANSI 61, ANSI C800
ASTM: ASTM B-62, ASTM B-584
AWWA: AWWA C-800
End Connection 1: FNPT
End Connection 2: FNPT
End Connections: FNPT
Inlet Service Size: 3/4
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Material: Brass, Rubber
Material Type: EPDM
NSF: NSF 372, NSF 61
NSF Certified: Yes
OutletMeter Size: 3/4
Pressure Class: 300#
Style Name: 76101W
Valve Size: 3/4 in x 5/8 in x 3/4 in
Valve Stem: Blowout-proof
Valve Type: Curb Stop Valve
